Visoflex

VisoflexI,II,III

Leica Screw mount (L39) flange back 28.80mm
Leica M mount flange back 27.80mm
VisoflexI's width 62.50mm, VisoflexII,III's width 51.00mm
Total VisoflexI 91.30mm, VisoflexII,III 68.80mm
VisoflexI用レンズは、OUBIO(16466M)を用いてVisoflexII,IIIで使用可能
OUBIO(16466M) = 22.50mm
Nikon F mount flange back (非公称値)46.50mm
VisoflexII,III adapter for Nikon F Mount's width 22.30mm

Leica Product Code (Old)	Leica Product Code (New)	Description	Fig1	Fig2
MOOSP	14020K	L39 extension adapter (15mm)*	MOOSP(14020K)
OTDYM	16455J	VisoflexII M mount without lupe
OCLOM	16456K	VisoflexII M mount with OTXBO(16460)
OTYDO	16457L	VisoflexII L39 mount without lupe
OUCLO	16458V	VisoflexII L39 mount with OTXBO(16460)
OTXBO	16460T	Right-angle 4x viewing magnifier (right-way-round image)
OTVXO	16461Q	Simple vertical 5x magnifier (reversed image)*
?????	16462?	(M->L46)90mm/f2,135mm/f2.8 lens head focusing mount	16462
ZOOEP	16463J	(M->L46)90mm/f2 focusing mount	ZOOEP(16463J)	ZOOEP(2)
OTZFO	16464K	(M->L32)Universal focusing mount (L32 32mm Screw mount)*	16464K
OTZFO	16465?	OUBIO like, Universal focusing mount
OUBIO	16466M	(M->L39)extension adapter (22.50mm)*	OUBIO(16466M)
OUAGO	16467N	(M->L32)focusing mount for ELMAR 90mm/f4*	OUAGO(16467N)
OTQNO	16468X	L32 extension adapter (9mm)*	OTQNO(16468X)
OUFRO	16469Y	M mount extension adapter*	OUFRO(16469Y)
OTRPO	16471J	L32 extension adapter*	OTRPO(16471J)
OTSRO	16472K	(L32->L42) extension adapter (L42 42mm Screw mount)*	OTSRO(16472K)
?????	16473?	(L32->L39) extension adapter*	?????(16473?)
OUEPO	16474M	L46 extension adapter	OUEPO(16474M)
ZOOAN	16495B	short focusing mount for HEKTOR 135mm/f4.5 lens head
UOOVH	16580L	(L39->L42) extension adapter*
UOOVH	16580L	(L39->L42) extension adapter*	UOOVH(16580L)
UOOWV	16585D	(L39->L32) extension adapter(14.5mm)*	UOOWV(16585D)
ROOYH	16615J	L39 extension adapter 26mm for REPROVIT II
VBHOO	17660C	L39->L39 adapter ring for FOCOMAT IIc
DNWOO	17661Z	M->L39 adapter ring for FOCOMAT IIc	DNWOO(17661Z)
DOOBC	17671T	M->L39 adapter ring for VALOYII	DOOBC(17671T)
DMUOO	17672U	lens unit of the 50mm SUMMICRON->L39 adapter ring for VALOYII	DMUOO(17672U)
OOVBH	17673V	FINETTA lens->L39 adapter ring for VALOYII
OOVCK	17674W	AKARELLE lens->L39 adapter ring for VALOYII
DOORX	17675X	PAXETTE lens->L39 adapter ring for VALOYII
OOVMC	17676Y	LORDMAT lens->L39 adapter ring for VALOYII
OOVKY	17677Z	EXAKTA lens->L39 adapter ring for VALOYII
OOVHU	17678A	ROBOT->L39 adapter ring for VALOYII
OOVPI	17679B	ROBOT ROYAL lens->L39 adapter ring for VALOYII
OOVIW	17681N	DIAX I a->L39 adapter ring for VALOYII
OOVDM	17682P	CONTAX lens->L39 adapter ring for VALOYII
OOVFQ	17683Q	EXAKTA lens without pre-selector iris->L39 adapter ring for VALOYII
OOVGS	17684R	PROMINENT lens->L39 adapter ring for VALOYII
?????	17686?	Praktica SM to Leica Screw Mount Adapter	17686
COOMI	70442	Micrometer extension ring focusing adapter L39->L40? for FULDY*	COOMI
COOEL	70443	L40?->L32 Adapter for COOMI*	70443 (COOEL)
COOEL	70443	90mm/f4 ELMAR Adapter for COOMI	COOEL
COONY	70444	90mm/f4.5 VELOSTIGMAT adapter for COOMI	COONY
COOSE	70445	127mm/f4.5 VELOSTIGMAT adapter for COOMI
COOHO	70446	135mm/f4.5 HEKTOR adapter for COOMI	COOHO(1)	COOHO(2)
ZOOXY	??????	Focusing mount (3.5ft-9inch)for OOZAB
ZOOWL	??????	Focusing mount 50mm/f4.5 FOCOTAR for OOZAB
ROOYH	16615J	L39 extension adapter 26mm for ZOOXY
ZWTOO	??????	Focusing mount for 50mm/f3.5 ELMAR
ZWTOO	??????	HESUM focusing mount for 50mm/f2.0 SUMMAR
BOOXZ	??????	L39 extension ring B 7mm for ZWTOO-HESUM
FVOOQ	??????	L39 extension ring F 15mm for ZWTOO-HESUM
GVKOO	??????	L39 extension ring G 30mm for ZWTOO-HESUM
ZOOMF	??????	L39 extension ring 50mm for 135mm/f4.5 HEKTOR lens head with ZOOAN
?????	22232?	M42 to M mount adapter*	22232

NIKON's Adapter

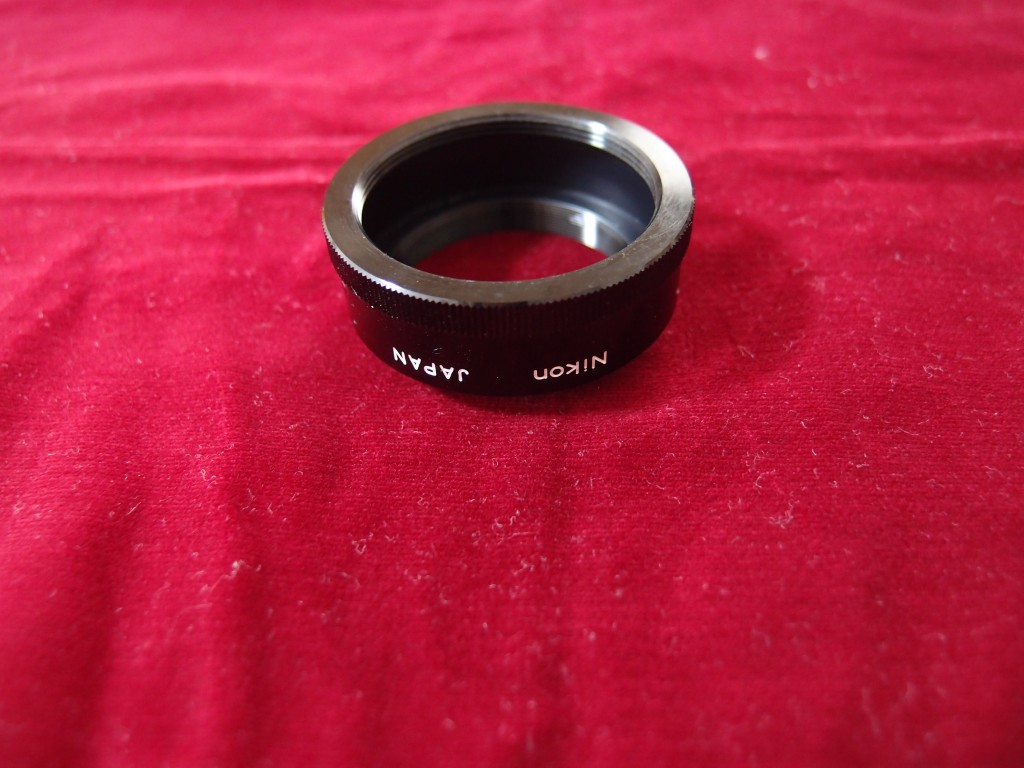

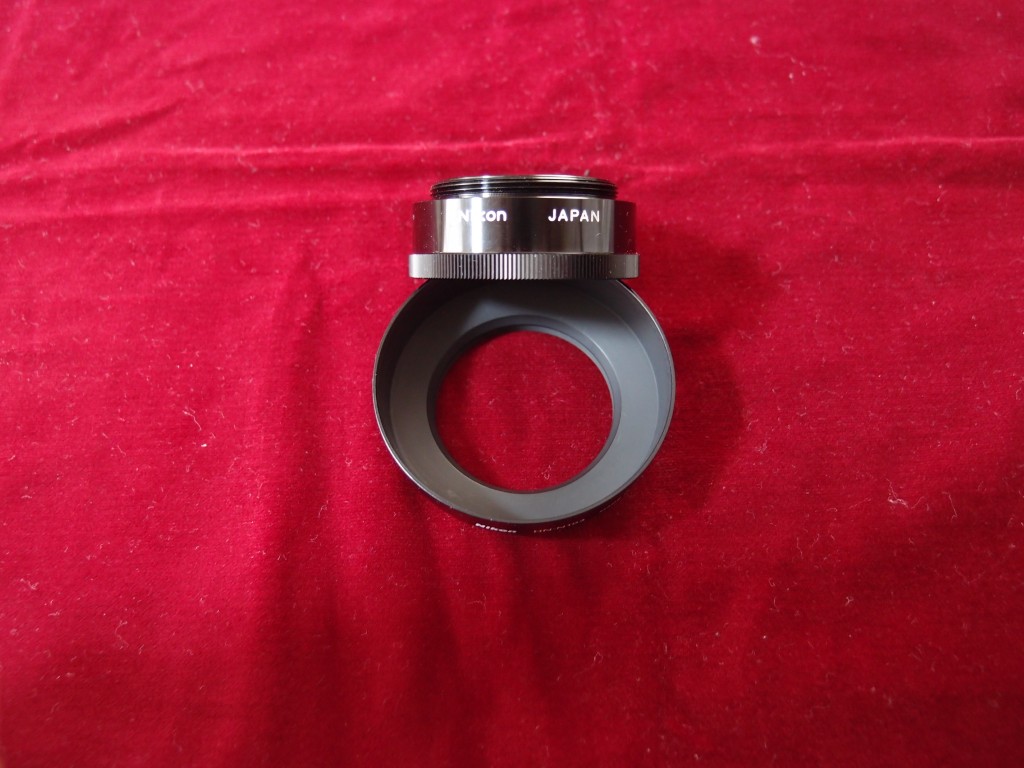

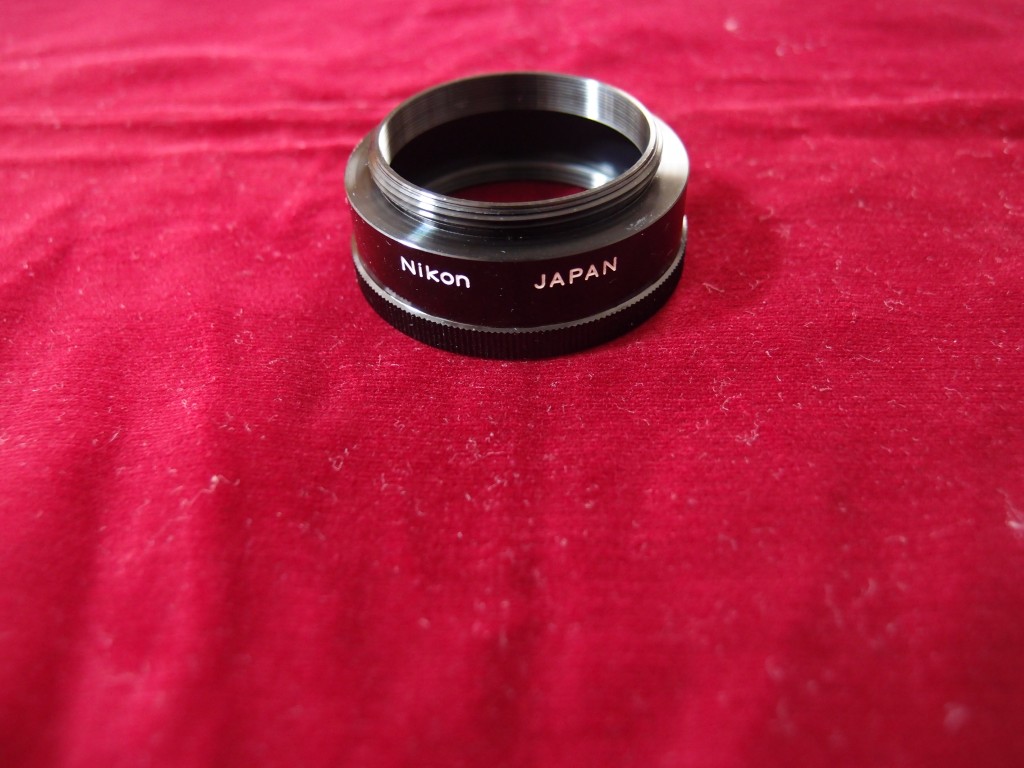

- K1,K2,K3,K4,K5K-series extension ring No.1-5*
- MPJ93040Nikon F mount -> Leica Screw mount*
- MPJ93040(2)Nikon F mount -> Leica Screw mount*
- Leica Base PlateLeica Screw mount Plate
- Reverse Adapter 40.5mmNikon Reverse Adapter for EL-NIKKOR
- BR5Nikon Reverse Adapter
- Reverse Adapter 34.5mmNikon Reverse Adapter for EL-NIKKOR
K&F's Adapter

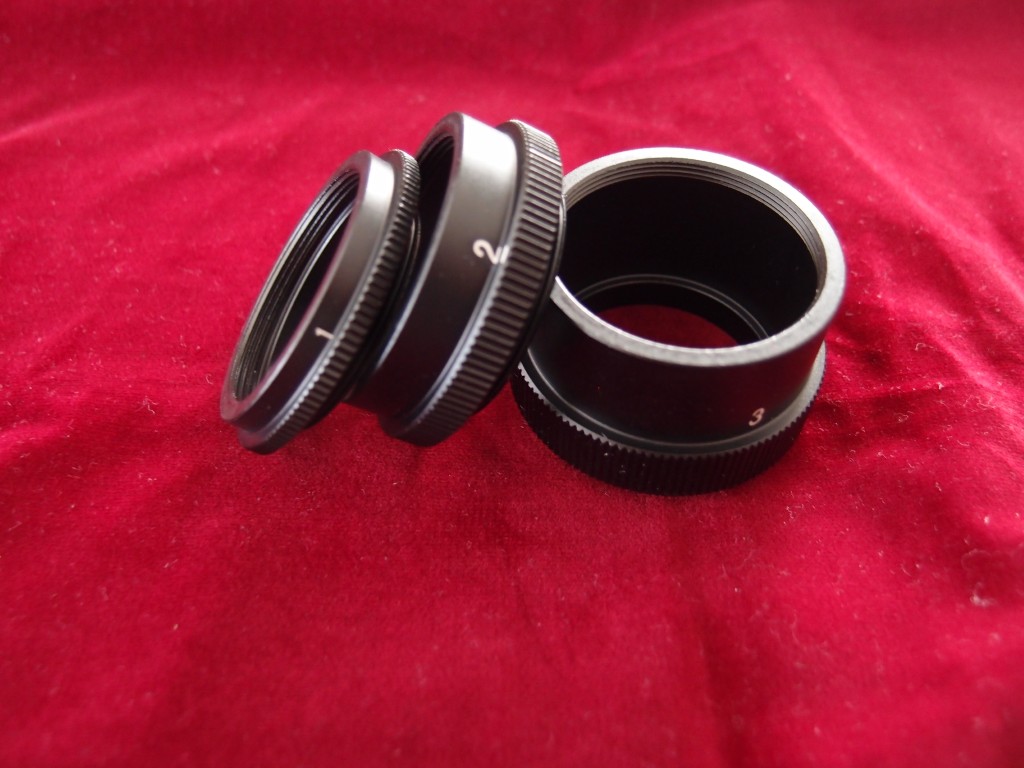

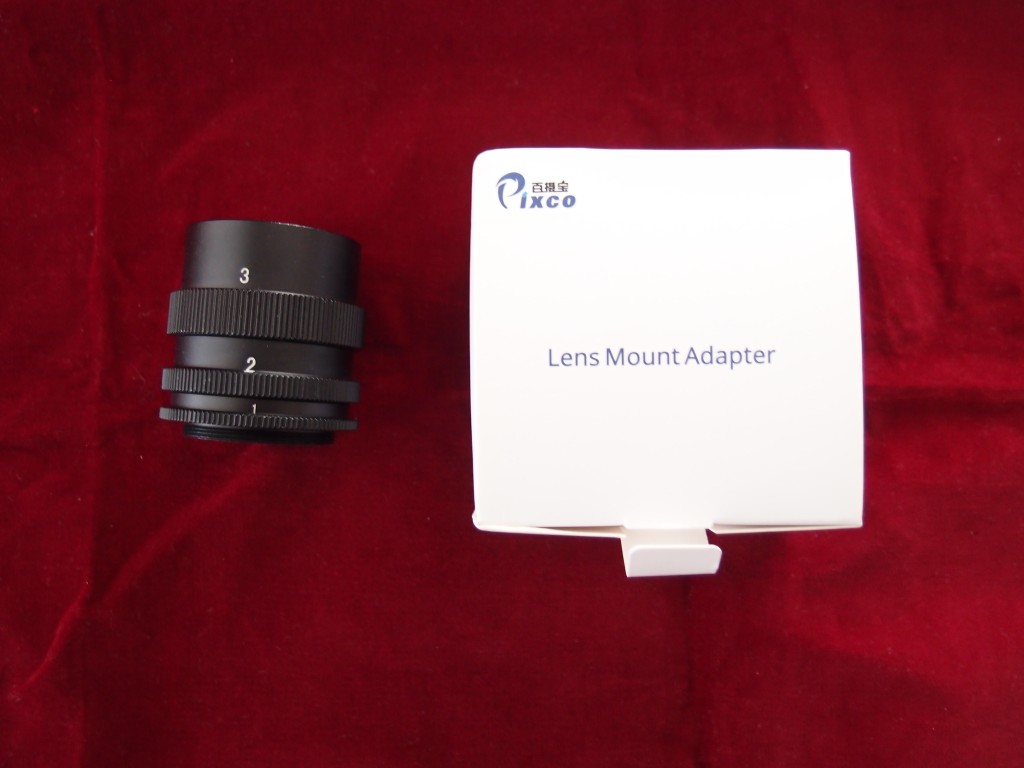

Pixco's Adapter

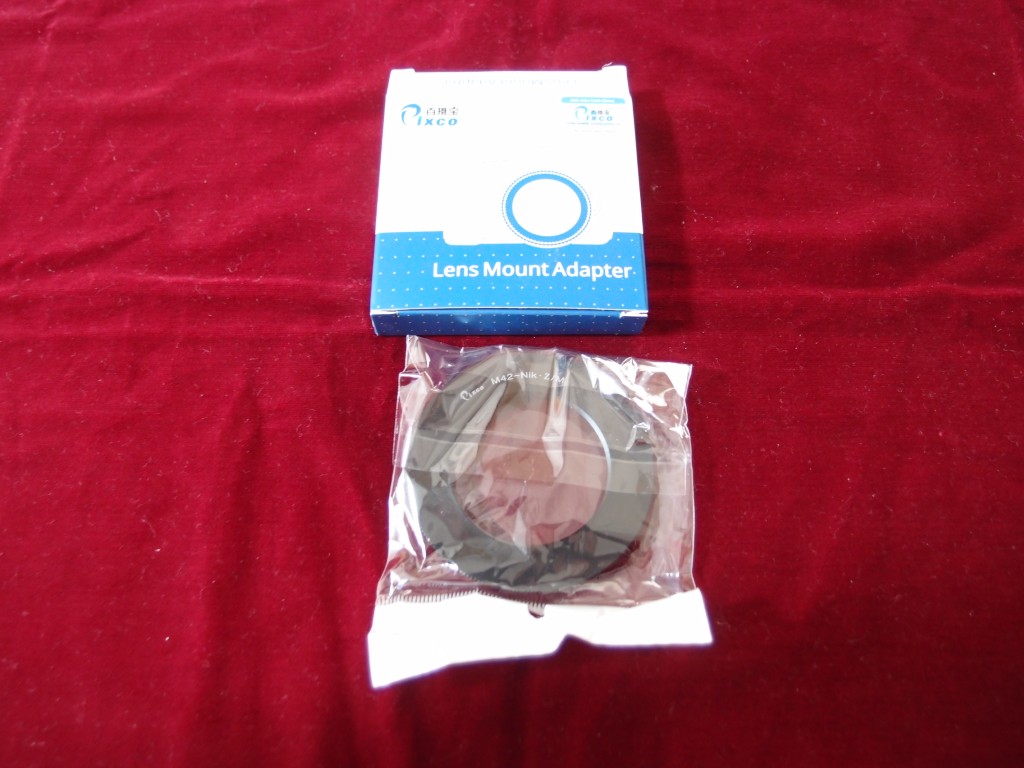

- Nikon S mount -> Nikon Z mount*
- Nikon S mount -> Nikon Z mount(2)*

Kilfitt's Adapter
- Kilfitt Nikon Leica AdapterNikon F mount -> Leica Screw mount*
TOMYTEC BORG OASIS STUDIO M42
- OASYS Adapters (Nikon F mount -> 34.5mm)5003 カメラマウントニコン用(Nikon F -> M49.8AD) + 7843(M49.8AD -> M42P1) + 7848(M42P1 -> M34.5AD)
Order Made Adapter
- F to L42 AdapterNikon F mount -> L42 mount (with BR2A)*
- F to M AdapterNikon F mount -> Leica M mount (with BR2A and 16596G)*
- Nikon F to Leica M AdapterNikon F mount -> Leica M mount (with 16469Y and K2)*
- Another Nikon F to Leica M AdapterNikon F mount -> Leica M mount KINDAI International*
Unknown Adapter
- Nikon F to M42 AdapterNikon F mount -> M42*
- Nikon F Adapter to M42(2)Nikon F mount -> M42(2)*

34.5mm 39mm Reverse Adapter	Fig2	Fig3	Fig4
34.5mm ->39mm Reversing Adapter(1)	Adapter(2)	Adapter(3)	Adapter(4)

VisoflexII,III基準での表(不明な点は空欄もしくは?)

Adapter1	Adapter2	Lens	Without Adapter2	With Adapter2
None	None	TELE-ELMARIT 180mm/f2.8	∞ - 180
16462	OUEPO(16474M)	SUMMICRON 90mm/f2	∞ - 72	? - 47
16462	OUEPO(16474M)	ELMARIT 135mm/f2.8	∞ - 151	155 - 93
ZOOEP(16463J)	OUEPO(16474M)	SUMMICRON 90mm/f2	∞ - 100 \| 1 : 9 == 21.6 x 32.4 \| 1.2 x	104 - 61 \| 1 : 4.5 == 10.8 x 16.2 \| 1.5 x
OUBIO(16466M)	MOOSP(14020)	TELYT 200mm/f4	∞ - 300	311 - 176
OUAGO(16467N)	OTQNO(16468X)	ELMAR 90mm/f4	∞ - 100 \| 1 : 9 == 21.6 x 32.4 \| 1.2 x	110 - 63 \| 1 : 4.7 == 11.3 x 17 \| 1.5 x
OTZFO(16464K)	OTRPO(16471J)	ELMAR 65mm/f3.5	∞ - 33 \| 1 : 2.4 == 5.8 x 8.7 \| 2 x	33 - 27 \| 1 : 1.2 == 2.9 x 4.3 \| 3.4 x
OTZFO(16464K)	OTRPO(16471J)	ELMARIT 90mm/f2.8	∞ - 50 \| 1 : 3.3 == 8 x 12 \| 1.7 x	50 - 39 \| 1 : 1.7 == 4 x 6 \| 25 x
OTZFO(16464K)	OTRPO(16471J)	TELE-ELMAR 135mm/f4	∞ - 98	100 - 68
OTZFO(16464K)	OTSRO(16472K)	ELMAR 135mm/f4 / HEKTOR 135mm/f4.5	∞ - 96 \| 1 : 5 == 12 x 18 \| 1.4 x	96 - 66 \| 1 : 2.5 == 6 x 9 \| 2 x
OUFRO(16469Y)	OUBIO(16466M)	TELYT 400mm/f5	∞ - 800 \| 1 : 17.5 == 42 x 63 \| 1 x	1700 - 600 \| 1 : 12.5 == 30 x 45 \| 1.25 x
OUFRO(16469Y)	OUBIO(16466M)	TELYT 280mm/f4.8	∞ - 600 \| 1 : 20.5 == 49 x 73.5 \| 1 x	850 - 400 \| 1 : 13 == 31 x 46.5 \| 1.1 x
OUFRO(16469Y)	OUBIO(16466M)	TELYT 200mm/f4.5	∞ - 300 \| 1 : 12.8 == 30.7 x 46.1 \| 1.2 x	440 - 200 \| 1 : 7.8 == 18.7 x 28.1 \| 1.3 x
OUFRO(16469Y)	OUBIO(16466M)	ELMAR 135mm/f4 / HEKTOR 135mm/f4.5 (in short mount)	∞ - 150 \| 1 : 9 == 21.6 x 32.4 \| 1.2 x	211 - 103 \| 1 : 5.5 == 13.2 x 19.8 \| 1.4 x
OUFRO(16469Y)	OUBIO(16466M)	HEKTOR 125mm/f2.5	∞ - 120 \| 1 : 8 == 19.2 x 28.8 \| 1.3 x	169 - 83 \| 1 : 4.8 == 11.5 x 17.3 \| 1.5 x
OUFRO(16469Y)	OUBIO(16466M)	50mm LENS	21.2 \| 1: 1.3 == 3.1 x 4.7 \| 3 x	20.8 \| 1 : 1 == 2.4 x 3.6 \| 4 x
OUFRO(16469Y)	OUBIO(16466M)	35mm LENS	1.4 \| 1.1 : 1 == 2.2 x 3.3 \| 4.5 x	14.5 \| 1.4 : 1 == 1.7 x 2.6 \| 6 x
